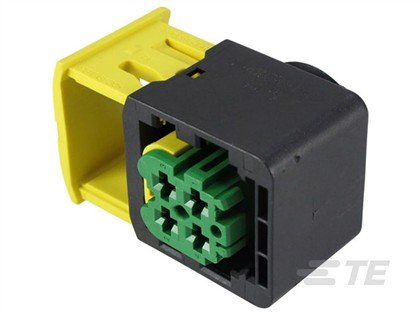

Automotive Connectors 4P MCP 2.8 REC HSG
| Weight | 0.05 kg |
|---|---|
| Dimensions | 1.69343 × 101225.7 cm |
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 3-1418390-1 |
| PRC | AMP |
| Centerline (Pitch) | .236 in 6 mm |
| Circuit Application | Signal |
| Connector & Housing Type | Housing for Female Terminals |
| Connector Height | 1.23 in 31.25 mm |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Wire |
| Contact Current Rating (Max) | 40 A |
| Contact Size | 2.8mm |
| Contact Type | Receptacle |
| Housing Material | PBT GF |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Mating Tab Width | .11 in 2.8 mm |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 100 °C 105 °C 110 °C 120 °C 125 °C 130 °C 140 °C 70 °C 80 °C 85 °C |
| Operating Temperature Range | -40 – 140 °C -40 – 284 °F |
| Operating Voltage | 60 VDC |
| Packaging Method | Carton |
| Packaging Quantity | 400 |
| Primary Product Color | Green |
| Row-to-Row Spacing | .118 in 3 mm |
| Sealable | Yes |
| Strain Relief | Without |
| UL Flammability Rating | UL 94V-0 |
