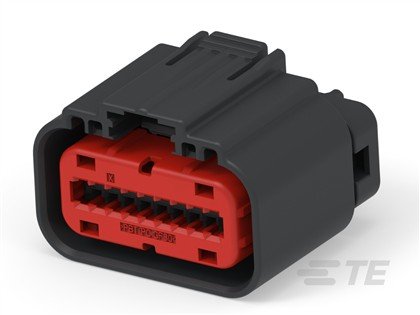

2X9 SEALED PLUG ASSY KEY A
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 3-2203663-3 |
| PRC | AMP |
| Centerline (Pitch) | .1 in 2.54 mm |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Housing for Female Terminals |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Contact Current Rating (Max) | 8.2 A |
| Contact Size | .64mm |
| Contact Type | Receptacle |
| Housing Material | PA 66 GF |
| Mating Tab Width | .025 in .64 mm |
| Number of Positions | 5 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C 185 °F |
| Operating Temperature Range | -40 – 85 °C -40 – 185 °F |
| Primary Product Color | Black |
| Sealable | Yes |
