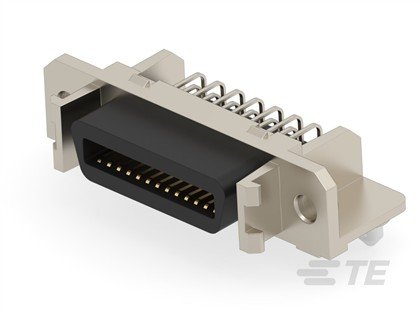

3-2232516-1

Additional information

Weight	0.05 kg
Manufacturer	TE CONNECTIVITY/AMP BRAND
Part Number	3-2232516-1
PRC	AMP
Centerline (Pitch)	.05 in 1.27 mm
Circuit Application	Signal
Connector & Contact Terminates To	Printed Circuit Board
Connector & Housing Type	Receptacle
Connector Mounting Type	Panel Mount
Connector Profile	Standard
Connector System	Board-to-Board
Contact Base Material	Copper Alloy
Contact Current Rating (Max)	1:00 AM
Contact Mating Area Plating Material	Gold
Contact Mating Area Plating Material Thickness	30 µin
Contact Shape & Form	Rectangular
Contact Underplating Material	Nickel
Housing Material	Thermoplastic Polyester GF
Mating Alignment Type	Integral with mating surface
Mating Retention	With
Mating Retention Type	Latch
Number of Positions	26
Number of Rows	2
Number of Signal Positions	26
Operating Temperature Range	-40 – 85 °C -40 – 185 °F
Packaging Method	Box & Tray Tray
Packaging Quantity	120
PCB Contact Termination Area Plating Material	Tin
PCB Mount Alignment	With
PCB Mount Orientation	Right Angle
PCB Mount Retention	With
PCB Mount Retention Type	Retention Leg
PCB Thickness (Recommended)	.063 in 1.6 mm
Primary Product Color	Black
Row-to-Row Spacing	.075 in 1.9 mm
Shielded	No
Termination Method to Printed Circuit Board	Through Hole - Solder
Termination Post & Tail Length	.11 in 2.8 mm
UL Flammability Rating	UL 94V-0
