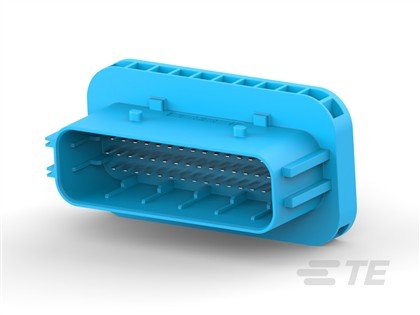

Connector Header Through Hole 46 position 0.157
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 3-2331102-1 |
| PRC | AMP |
| Centerline (Pitch) | 4 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Mounting Type | Board Mount |
| Connector System | Wire-to-Board |
| Contact Current Rating (Max) | 23 A |
| Contact Mating Area Plating Material | Silver |
| Contact Size | 1.5mm |
| Contact Type | Tab |
| Header Type | Fully Shrouded |
| Mating Alignment | With |
| Mating Tab Thickness | .64 mm |
| Mating Tab Width | 1.5 mm |
| Number of Positions | 46 |
| Number of Rows | 3 |
| Operating Temperature Range | -30 – 120 °C |
| PCB Connector Assembly Type | PCB Mount Header |
| PCB Mount Orientation | Vertical |
| Primary Product Color | Blue |
| Sealable | Yes |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
