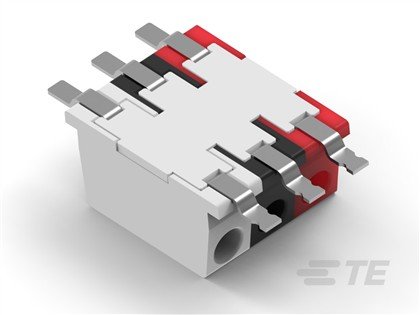

Board Connector 3 Contact(s) 1 Row(s) Solder Term
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 3-2834334-3 |
| PRC | AMP |
| Approved Standards | UL 1977 |
| Centerline (Pitch) | 4 mm |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Mounting Type | Board Mount |
| Connector System | Wire-to-Board |
| Contact Current Rating (Max) | 6:00 AM |
| Mating Alignment | With |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature Range | -55 – 105 °C |
| Sealable | No |
| UL Flammability Rating | UL 94V-0 |
| Wire Size | 18 – 22 AWG |
