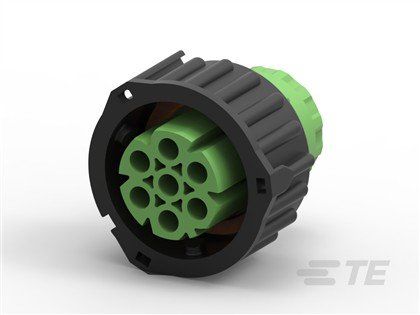

Automotive Connectors 1.5MM SKT CONN 7POS
| Weight | 0.05 kg |
|---|---|
| Dimensions | 1.2231 cm |
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 3-967650-1 |
| PRC | AMP |
| Centerline (Pitch) | .449 in 11.4 mm |
| Connector & Housing Type | Housing for Female Terminals |
| Connector Height | 1.291 in 32.8 mm |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Wire |
| Contact Size | 1.5mm |
| Contact Type | Socket |
| Housing Material | PBT GF30 |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Number of Positions | 7 |
| Operating Temperature (Max) | 100 °C 105 °C 110 °C 120 °C 70 °C 75 °C 80 °C 85 °C 90 °C 158 °F |
| Operating Temperature Range | -40 – 120 °C -40 – 248 °F |
| Packaging Method | Box |
| Packaging Quantity | 500 |
| Sealable | Yes |
| Strain Relief | Without |
| UL Flammability Rating | UL 94HB |
