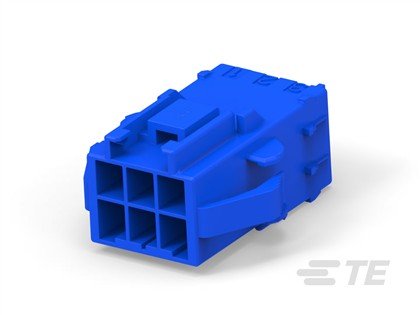

Power to the Board PDL 6P CAP 3.96 D/R P/M(GWT) B
| Weight | 0.05 kg |
|---|---|
| Dimensions | 26.1 cm |
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 368588-6 |
| PRC | AMP |
| Agency/Standard | CNR USR |
| Approved Standards | CSA/C22.2 No. 182.3-M1987 UL 1977 |
| Centerline (Pitch) | .156 in 3.96 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Receptacle |
| Connector Mounting Type | Panel Mount |
| Connector System | Wire-to-Panel Wire-to-Wire |
| Contact Layout | Matrix |
| Contact Retention Within Housing | Without |
| Contact Type | Tab |
| Glow Wire Rating | GWT 750°C (Without Flame) |
| Housing Color | Blue |
| Housing Material | PA 66 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Operating Temperature Range | -30 – 65 °C -22 – 149 °F |
| Operating Voltage | 300 VAC |
| Packaging Method | Bag |
| Panel Mount Feature | With |
| Row-to-Row Spacing | .181 in 4.6 mm |
| Sealable | No |
| Termination Method to Wire & Cable | Crimp |
| UL Flammability Rating | UL 94V-0 |
