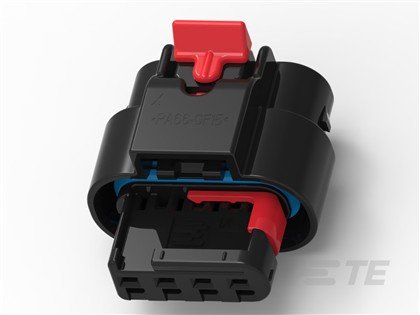

4POS MCON 1.2 CB REC 2p TL SEALED
| Weight | 0.05 kg |
|---|---|
| Dimensions | 97224.7 × 104326.5 cm |
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 4-1456426-1 |
| PRC | AMP |
| Centerline (Pitch) | .157 in 4 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Housing for Female Terminals |
| Connector Height | .689 in 17.5 mm |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Board Wire-to-Device Wire-to-Wire |
| Contact Size | 1.2mm |
| Contact Type | Receptacle |
| Housing Material | PA GF |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Mating Tab Width | .047 in 1.2 mm |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 100 °C 105 °C 110 °C 120 °C 125 °C 130 °C 140 °C 145 °C 150 °C 70 °C |
| Operating Temperature Range | -40 – 150 °C -40 – 302 °F |
| Operating Voltage | 12 VDC |
| Packaging Method | Box |
| Packaging Quantity | 1000 |
| Primary Product Color | Black |
| Sealable | Yes |
| Strain Relief | Without |
