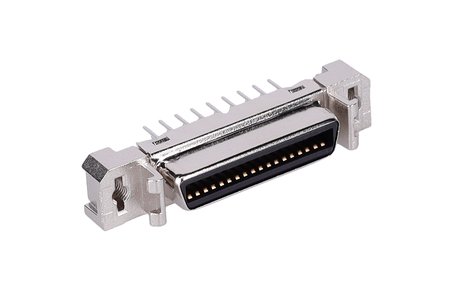

D-Sub Standard Conn CHAMP 050-2 REC HDR ASSY V
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 5917334-5 |
| PRC | AMP |
| Centerline (Pitch) | .05 in 1.27 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector & Housing Type | Receptacle |
| Connector Mounting Type | Board Mount |
| Connector Profile | Standard |
| Connector System | Cable-to-Board |
| Contact Base Material | Phosphor Bronze |
| Contact Current Rating (Max) | .5 A 1 A |
| Contact Mating Area Plating Material | Gold |
| Contact Shape & Form | Single Beam in Box |
| Contact Underplating Material | Nickel |
| Housing Color | Black |
| Housing Material | Thermoplastic Zinc Die Cast |
| Mating Retention | With |
| Mating Retention Type | Latches |
| Number of Positions | 36 |
| Number of Rows | 4 |
| Operating Temperature Range | -55 – 85 °C -67 – 185 °F |
| Packaging Method | Tube |
| Packaging Quantity | 10 |
| Panel Mount Feature | With |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Mount Orientation | Vertical |
| PCB Mount Retention | With |
| PCB Mount Retention Type | Retention Leg |
| PCB Thickness (Recommended) | .063 in 1.6 mm |
| Row-to-Row Spacing | .075 in 1.9 mm |
| Sealable | No |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| UL Flammability Rating | UL 94V-0 |
