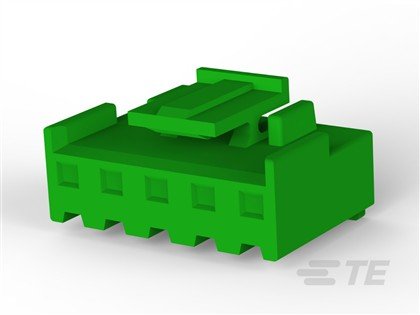

Headers&Wire Housings 3.96 EP PLUG HSG 5P(GREEN)
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 6-1123722-5 |
| PRC | AMP |
| Centerline (Pitch) | .155 in 3.95 mm |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Plug |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector Product Type | Housing |
| Connector System | Wire-to-Board |
| Mating Retention | With |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Operating Temperature Range | -30 – 105 °C -22 – 221 °F |
| Packaging Method | Bag |
| Primary Product Color | Green |
| Sealable | No |
| Termination Method to Wire & Cable | Crimp |
| UL Flammability Rating | UL 94V-0 |
