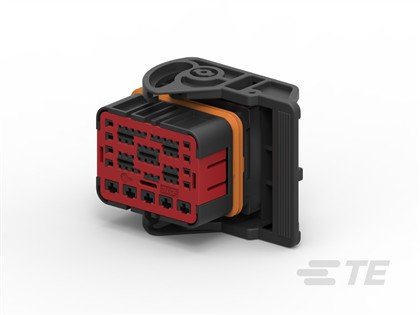

Combination Line Connector 32 Contact(s) Female
| Weight | 0.05 kg |
|---|---|
| Dimensions | 15940.4 × 12130.9 cm |
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 6-2208775-4 |
| PRC | AMP |
| Agency/Standard | USCAR-2 |
| Centerline (Pitch) | .098 in .138 in .276 in 2.5 mm 3.5 mm 7 mm |
| Circuit Application | Signal |
| Connector & Housing Type | Housing for Female Terminals |
| Connector Height | 1.4 in 35.6 mm |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Board Wire-to-Device |
| Contact Size | .63mm 1.5mm 2.8mm |
| Contact Type | Receptacle |
| Housing Material | PA GF |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Mating Tab Width | .025 in .059 in .11 in .63 mm 1.5 mm 2.8 mm |
| Number of Positions | 53 |
| Number of Rows | 5 |
| Packaging Method | Box |
| Packaging Quantity | 100 |
| Primary Product Color | Black |
| Row-to-Row Spacing | .165 in 4.2 mm |
| Sealable | Yes |
| Strain Relief | Without |
