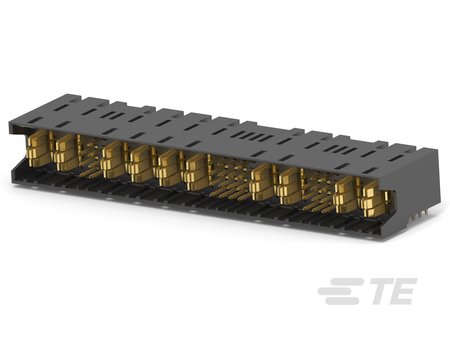

CONN HDR MULT-BEAM 46POS EDGE MT
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 6450849-6 |
| PRC | AMP |
| Centerline (Pitch) | .1 in .3 in 2.54 mm 7.62 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector & Housing Type | Plug |
| Connector Mounting Type | Board Mount |
| Connector System | Board-to-Board |
| Contact Current Rating (Max) | 50 A |
| Contact Mating Area Plating Material | Gold |
| Contact Mating Area Plating Material Thickness | 30 µin .76 µm |
| Contact Retention Within Housing | Without |
| Contact Type | Blade Pin |
| Contact Underplating Material | Nickel |
| Glow Wire Rating | High Temperature Part - Not Glow Wire |
| Housing Color | Black |
| Housing Material | High Temperature Thermoplastic |
| Mating Retention Type | Action/Compliant Tail |
| Number of Positions | 46 |
| Number of Power Positions | 10 |
| Number of Rows | 4 |
| Number of Signal Positions | 36 |
| Operating Temperature Range | -40 – 125 °C -40 – 257 °F |
| Operating Voltage | 300 VAC 60 VAC 300 VDC 60 VDC |
| Packaging Method | Tape |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Mount Orientation | Right Angle |
| PCB Mount Retention | With |
| PCB Mount Retention Type | Action/Compliant Tail |
| Row-to-Row Spacing | .1 in 2.54 mm |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Termination Post & Tail Length | .209 in 5.33 mm |
| UL Flammability Rating | UL 94V-0 |
