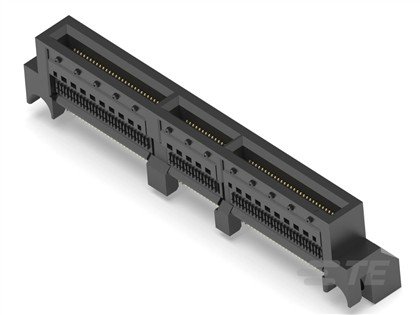

Standard Card Edge Conn ASY STRADDLE Mt. 140P 093
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 7-2340324-3 |
| PRC | AMP |
| Centerline (Pitch) | .023 in .6 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Mounting Type | Board Mount |
| Contact Base Material | Copper Alloy |
| Contact Current Rating (Max) | 1.1 A |
| Contact Mating Area Plating Material | Gold |
| Contact Mating Area Plating Material Thickness | 30 µin .762 µm |
| Contact Underplating Material | Nickel |
| Number of Positions | 140 |
| Number of Rows | 2 |
| Operating Temperature Range | -55 – 85 °C -67 – 185 °F |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Mount Orientation | Straddle Mount |
| Termination Method to Printed Circuit Board | Surface Mount |
