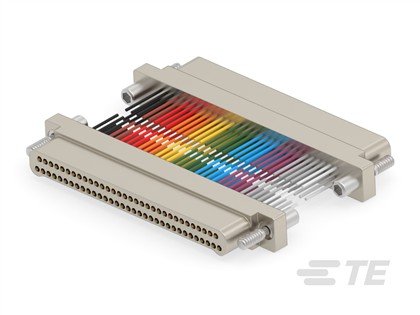

JTM065PP2DCC80N
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 9-1589737-0 |
| PRC | AMP |
| Centerline (Pitch) | .025 in .63 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector & Housing Type | Jumper |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Board-to-Board |
| Contact Base Material | Beryllium Copper |
| Contact Current Rating (Max) | 1:00 AM |
| Contact Mating Area Plating Material | Gold |
| Housing Material | Aluminum |
| Number of Positions | 65 |
| Operating Temperature Range | -200 – 200 °C -328 – 392 °F |
| Sealable | No |
| Termination Method to Wire & Cable | Preterminated Flying Leads |
