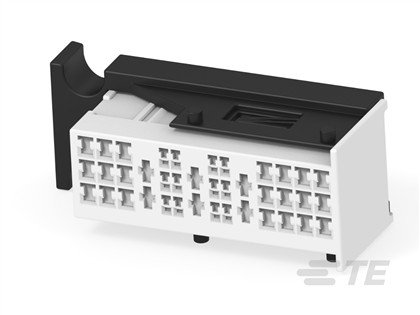

HYBRID 39P PLUG ASSY
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 936405-1 |
| PRC | AMP |
| Centerline (Pitch) | .157 in 4 mm |
| Circuit Application | Signal |
| Connector & Housing Type | Housing for Female Terminals |
| Connector Height | 1.094 in 27.8 mm |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Wire |
| Contact Size | 1mm 2.3mm 2.8mm |
| Contact Type | Receptacle |
| Housing Material | PBT |
| Mating Alignment | With |
| Mating Alignment Type | Polarized |
| Mating Tab Width | .039 in 1 mm |
| Number of Positions | 39 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 70 °C 75 °C 80 °C 158 °F 167 °F 176 °F |
| Operating Temperature Range | -40 – 80 °C -40 – 176 °F |
| Operating Voltage | 12 VDC |
| Primary Product Color | Natural |
| Sealable | Yes |
| Strain Relief | Without |
