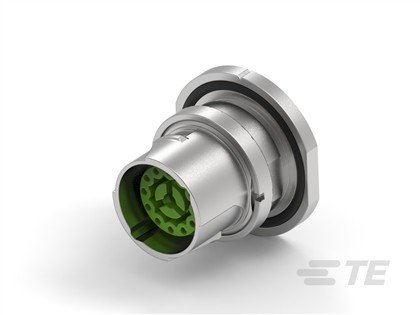

Circular Connector Zinc Alloy Receptacle
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | EEA002N00000008000 |
| PRC | AMP |
| Approved Standards | UL |
| Circuit Application | Signal |
| Connector Mounting Type | Panel Mount |
| Connector System | Cable-to-Panel |
| Mating Retention Type | Push-Pull Self-Locking |
| Operating Temperature Range | -20 – 130 °C -4 – 266 °F |
| Operating Voltage | 63 VAC 63 VDC |
| Sealable | No |
| Shielded | Yes |
| UL Flammability Rating | UL 94V-0 |
