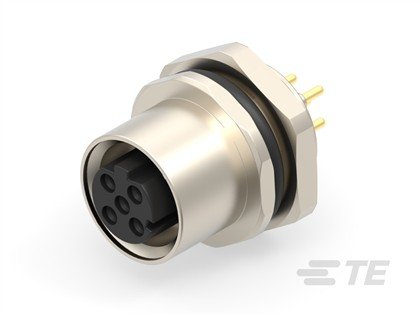

5 Position Circular Connector Plug Female Sockets
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | T4143512051-000 |
| PRC | AMP |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Wire-to-Panel |
| Contact Current Rating (Max) | 4:00 AM |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Mating Retention Type | Threaded Coupling |
| Number of Positions | 5 |
| Number of Signal Positions | 5 |
| Operating Temperature Range | -40 – 85 °C -40 – 185 °F |
| Operating Voltage | 60 VAC 60 VDC |
| Packaging Quantity | 1 |
| Sealable | Yes |
| Shielded | No |
| UL Flammability Rating | UL 94HB |
| Wire Size | 18 – 24 AWG |
