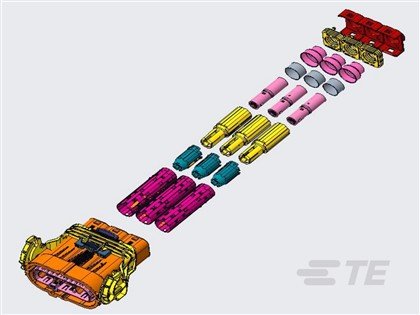

HVP800-3phi XE 180 50sqmm Key A
| Weight | 0.05 kg |
|---|---|
| Dimensions | 4.25108 × 36492.5 cm |
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | YH800-3P-180-50M-A |
| PRC | AMP |
| Centerline (Pitch) | .9 in 23 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Housing for Male Terminals |
| Connector Height | 2.25 in 57.3 mm |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Wire |
| Contact Size | 8mm |
| Contact Type | Pin |
| Housing Material | PA GF |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 140 °C 284 °F |
| Operating Temperature Range | -40 – 140 °C -40 – 284 °F |
| Operating Voltage | 850 VDC |
| Packaging Method | Box |
| Packaging Quantity | 18 |
| Primary Product Color | Orange |
| Sealable | Yes |
| Strain Relief | Without |
