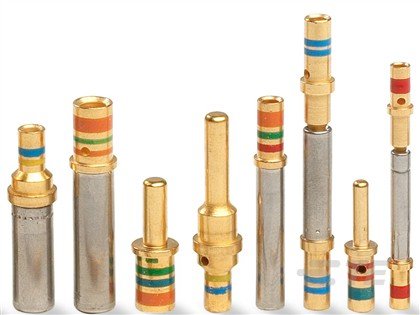

Connector ContactsCONTACTS (=724-0007-20)
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY / DEUTSCH |
| Part Number | 38943-20L |
| PRC | DE |
| Barrel Type | Closed |
| Circuit Application | Power Signal & High Speed Data |
| Connector & Contact Terminates To | Wire & Cable |
| Contact Base Material | Copper Alloy |
| Contact Current Rating (Max) | 7.5 A |
| Contact Mating Area Plating Material | Gold |
| Contact Retention Within Housing | With |
| Contact Size | Size 20 |
| Contact Type | Socket |
| Operating Temperature Range | -65 – 175 °C -85 – 347 °F |
| Operating Voltage | 115 VAC 115 VDC |
| Sealable | Yes |
| Termination Method to Wire & Cable | Crimp |
| Wire Size | 28 – 22 AWG .08 – .34 mm² |
