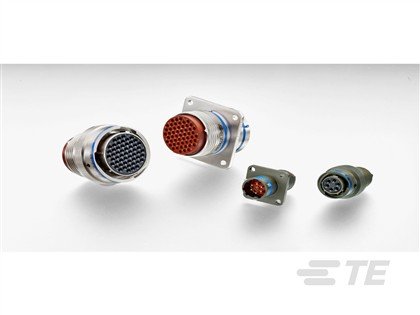

MIL Series Connector 55 Contact(s)
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY / DEUTSCH |
| Part Number | YAFD56-22-55SNC012 |
| PRC | DE |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Wire |
| Contact Current Rating (Max) | 7.5 A |
| Mating Alignment Type | Keyed |
| Mating Retention | With |
| Mating Retention Type | Bayonet |
| Number of Positions | 55 |
| Number of Power Positions | 55 |
| Number of Signal Positions | 55 |
| Operating Temperature Range | -55 – 200 °C -67 – 392 °F |
| Operating Voltage | 600 VAC 850 VDC |
| Sealable | Yes |
| Shielded | No |
| Wire Size | .2 – .52 mm² 12 – 14 AWG |
