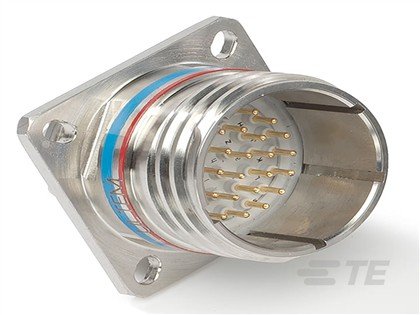

Circular MIL Spec Connector RECP ASSY
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY / DEUTSCH |
| Part Number | YDTS20F11-05PAV001 |
| PRC | DE |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector Mounting Type | Panel Mount |
| Connector System | Cable-to-Panel |
| Contact Current Rating (Max) | 7.5 A |
| Mating Alignment Type | Keyed |
| Mating Retention | With |
| Number of Positions | 5 |
| Number of Signal Positions | 5 |
| Operating Temperature Range | -65 – 200 °C -85 – 392 °F |
| Sealable | Yes |
| Shielded | No |
| Wire Size | 24 – 20 AWG .2 – .51 mm² |
