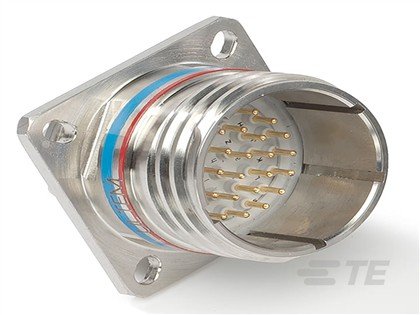

MIL Series Connector 19 Contact(s) Aluminum Alloy
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY / DEUTSCH |
| Part Number | YDTS20W15-19SNV001 |
| PRC | DE |
| Centerline (Pitch) | .1 in .06 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector Mounting Type | Panel Mount |
| Connector System | Wire-to-Wire |
| Contact Current Rating (Max) | 7.5 A |
| Mating Alignment Type | Polarization |
| Mating Retention | Without |
| Number of Positions | 19 |
| Number of Signal Positions | 19 |
| Operating Temperature Range | -65 – 200 °C -85 – 392 °F |
| Sealable | Yes |
| Shielded | Yes |
| Wire Size | 18 – 24 AWG .25 – 1.04 mm² |
