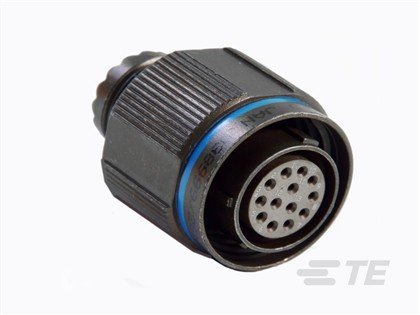

Circular MIL Spec Connector PLUG ASSY
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY / DEUTSCH |
| Part Number | YDTS26F19-35PNV001 |
| PRC | DE |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector Mounting Type | Panel Mount |
| Connector System | Cable-to-Panel |
| Contact Current Rating (Max) | 5:00 AM |
| Mating Alignment Type | Keyed |
| Mating Retention | With |
| Mating Retention Type | Threaded |
| Number of Positions | 66 |
| Number of Signal Positions | 66 |
| Operating Temperature Range | -65 – 200 °C -85 – 392 °F |
| Sealable | Yes |
| Wire Size | 28 – 22 AWG |
