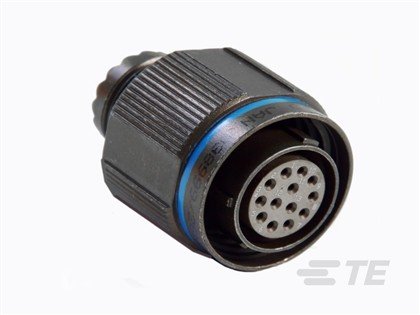

MIL Series Connector 15 Contact(s) Aluminum Alloy
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY / DEUTSCH |
| Part Number | YDTS26W15-15PNV001 |
| PRC | DE |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector Mounting Type | Panel Mount |
| Connector System | Cable-to-Panel |
| Contact Current Rating (Max) | 13 A |
| Mating Alignment Type | Keyed |
| Mating Retention | With |
| Mating Retention Type | Triple Start Threaded |
| Number of Positions | 15 |
| Number of Power Positions | 1 |
| Number of Signal Positions | 14 |
| Operating Temperature Range | -65 – 200 °C -85 – 392 °F |
| Operating Voltage | 600 VAC 850 VDC |
| Packaging Quantity | 1 |
| Panel Mount Feature | Without |
| Sealable | Yes |
| Shielded | Yes |
| Wire Size | 20 – 16 AWG .52 – 1.31 mm² |
