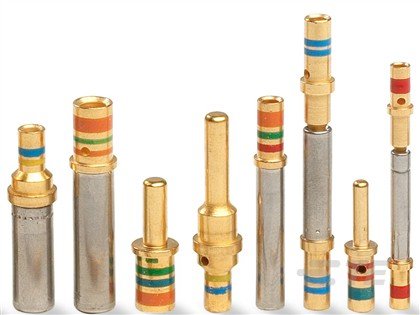

097-0014-16
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY / DEUTSCH |
| Part Number | ZPF000000000001199 |
| PRC | DE |
| Barrel Type | Closed |
| Circuit Application | Power Signal & High Speed Data |
| Connector & Contact Terminates To | Wire & Cable |
| Contact Base Material | Copper Alloy |
| Contact Current Rating (Max) | 13 A |
| Contact Mating Area Plating Material | Gold |
| Contact Retention Within Housing | With |
| Contact Size | Size 16 |
| Contact Type | Pin |
| Operating Temperature Range | -65 – 260 °C -85 – 500 °F |
| Operating Voltage | 115 VAC 115 VDC |
| Sealable | Yes |
| Termination Method to Wire & Cable | Crimp |
| Wire Size | 20 – 16 AWG .6 – 1.2 mm² |
