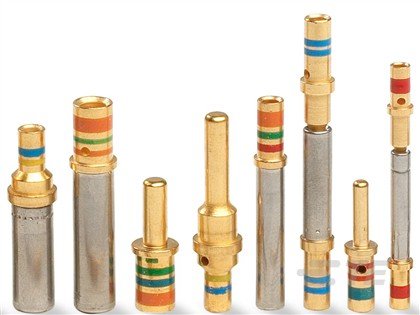

Rectangular Mil Spec Connectors 724-0001-08
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY / DEUTSCH |
| Part Number | ZPF000000000003589 |
| PRC | DE |
| Barrel Type | Closed |
| Circuit Application | Power |
| Connector & Contact Terminates To | Wire & Cable |
| Contact Base Material | Copper Alloy |
| Contact Current Rating (Max) | 46 A |
| Contact Mating Area Plating Material | Gold |
| Contact Retention Within Housing | With |
| Contact Size | Size 8 |
| Contact Type | Pin |
| Operating Temperature Range | -65 – 175 °C -85 – 347 °F |
| Operating Voltage | 115 VAC 115 VDC |
| Sealable | Yes |
| Termination Method to Wire & Cable | Crimp |
| Wire Size | 10 – 8 AWG 5.26 – 8.36 mm² |
