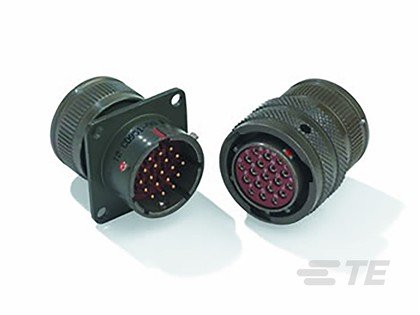

951-00 R 10-6 P 50
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY / DEUTSCH |
| Part Number | ZPF000000000006027 |
| PRC | DE |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector Mounting Type | Panel Mount |
| Connector System | Wire-to-Panel |
| Contact Current Rating (Max) | 7.5 A |
| Mating Alignment Type | Polarization |
| Mating Retention | With |
| Mating Retention Type | Bayonet |
| Number of Positions | 6 |
| Number of Signal Positions | 6 |
| Operating Temperature Range | -55 – 150 °C -67 – 302 °F |
| Operating Voltage | 115 VAC 120 VDC |
| Sealable | Yes |
| Shielded | Yes |
| Wire Size | 18 – 24 AWG .21 – .93 mm² |
