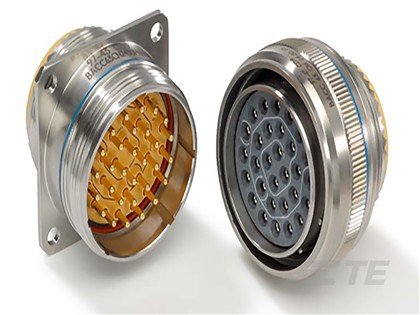

ZPF000000000038368

Additional information

Weight	0.05 kg
Manufacturer	TE CONNECTIVITY / DEUTSCH
Part Number	ZPF000000000038368
PRC	DE
Approved Standards	EN2997
Circuit Application	Power Signal & High Speed Data
Connector & Contact Terminates To	Wire & Cable
Connector Mounting Type	Panel Mount
Connector System	Wire-to-Panel
Contact Current Rating (Max)	7.5 A
Mating Alignment	With
Mating Alignment Type	Keyed
Mating Retention	With
Mating Retention Type	Threaded
Number of Positions	6
Number of Signal Positions	6
Operating Temperature Range	-65 – 200 °C -85 – 392 °F
Panel Mount Feature	With
Sealable	Yes
Shielded	Yes
Termination Method to Wire & Cable	Crimp
Wire Size	20 – 24 AWG .2 – .52 mm²
