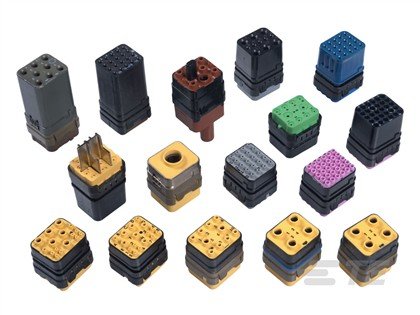

DMC-M 04-12 PC
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY / DEUTSCH |
| Part Number | ZPF000000000085930 |
| PRC | DE |
| Centerline (Pitch) | .27 in 6.95 mm |
| Circuit Application | Power Signal & High Speed Data |
| Connector & Contact Terminates To | Wire & Cable |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Wire |
| Contact Current Rating (Max) | 23 A |
| Contact Type | Pin |
| Number of Positions | 4 |
| Operating Temperature Range | -55 – 175 °C -67 – 347 °F |
| Packaging Method | Package |
| Packaging Quantity | 1 |
| Primary Product Material | Composite |
| Sealable | Yes |
| Termination Method to Wire & Cable | Crimp |
| Wire Size | 14 – 12 AWG 2 – 3 mm² |
