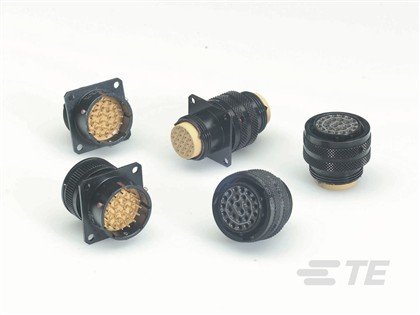

FDBA 50-12-8 PN-K-A377
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY / DEUTSCH |
| Part Number | ZPF000000000103412 |
| PRC | DE |
| Circuit Application | Power Signal & High Speed Data |
| Connector & Contact Terminates To | Wire & Cable |
| Connector Mounting Type | Panel Mount |
| Connector System | Wire-to-Panel |
| Contact Current Rating (Max) | 7.5 A |
| Number of Positions | 8 |
| Number of Signal Positions | 8 |
| Operating Temperature Range | -65 – 200 °C -85 – 392 °F |
| Operating Voltage | 115 VAC 115 VDC |
| Sealable | Yes |
| Shielded | No |
| Termination Method to Wire & Cable | Solder |
| Wire Size | 20 – 24 AWG .2 – .52 mm² |
