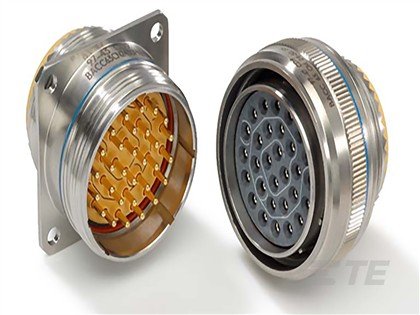

983-7A 20-41 PN 395
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY / DEUTSCH |
| Part Number | ZPF000000000202112 |
| PRC | DE |
| Approved Standards | EN2997 |
| Circuit Application | Power Signal & High Speed Data |
| Connector & Contact Terminates To | Wire & Cable |
| Connector Mounting Type | Panel Mount |
| Connector System | Wire-to-Panel |
| Contact Current Rating (Max) | 7.5 A |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Mating Retention | With |
| Mating Retention Type | Threaded |
| Number of Positions | 41 |
| Number of Signal Positions | 41 |
| Operating Temperature Range | -65 – 200 °C -85 – 392 °F |
| Panel Mount Feature | With |
| Sealable | Yes |
| Shielded | No |
| Termination Method to Wire & Cable | Crimp |
| Wire Size | 20 – 24 AWG .2 – .52 mm² |
