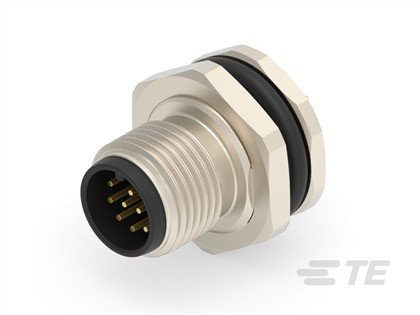

M12-MF-12CON-PG-LAU
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY / ENTRELEC |
| Part Number | 1SET310811R0000 |
| PRC | TAB |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector Mounting Type | Panel Mount |
| Connector System | Wire-to-Panel |
| Contact Current Rating (Max) | 1.5 A |
| Mating Alignment Type | Keyed |
| Mating Retention | With |
| Number of Positions | 12 |
| Number of Signal Positions | 12 |
| Operating Temperature Range | -40 – 85 °C -40 – 185 °F |
| Operating Voltage | 30 VAC 30 VDC |
| Packaging Quantity | 1 |
| Sealable | Yes |
| Shielded | No |
| UL Flammability Rating | UL 94HB |
| Wire Size | 26 – 24 AWG |
