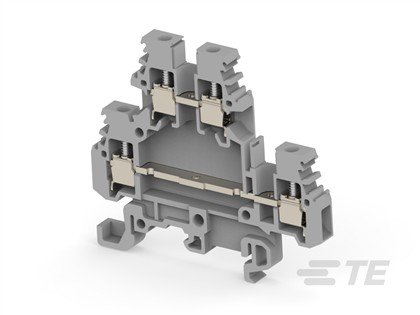

Modular Terminal Block 25A 2.5mm2 2 Deck(s)
| Weight | 15.529 kg |
|---|---|
| Dimensions | 52 × .1965 cm |
| Manufacturer | TE CONNECTIVITY / ENTRELEC |
| Part Number | 1SNA115490R1300 |
| PRC | TAB |
| Circuit Application | Signal |
| Connector Mounting Type | DIN Rail |
| Dielectric Withstanding Voltage (Max) | 2500 V |
| Housing Material | Polyamide 6.6 |
| Number of Positions | 2 |
| Operating Temperature Range | -55 – 110 °C -67 – 230 °F |
| Operating Voltage | 630 VAC |
| Primary Product Color | Gray |
| Termination Method to Wire & Cable | Screw Terminal |
| UL Flammability Rating | UL 94V-0 |
| Wire Size | 12 AWG 2.5 mm² |
