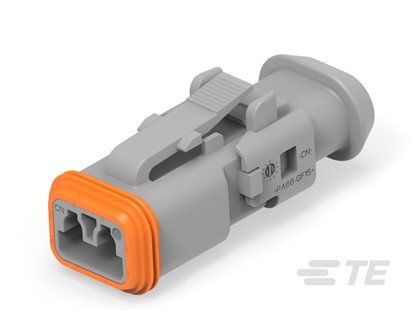

DT06-2S-TN81 PLG 2P GRY N SNAPXCAP
| Weight | 0.05 kg |
|---|---|
| Dimensions | 166142.2 × 68317.34 cm |
| Manufacturer | TE CONNECTIVITY / ICT |
| Part Number | 2-2303815-2 |
| PRC | ICT |
| Agency/Standard | SAE J2030 |
| Centerline (Pitch) | .215 in 5.46 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Housing for Female Terminals |
| Connector Height | .621 in 15.77 mm |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Wire |
| Contact Current Rating (Max) | 13 A |
| Contact Size | Size 16 |
| Contact Type | Socket |
| Housing Material | PA GF |
| Mating Alignment | With |
| Mating Alignment Type | Polarized |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C 257 °F |
| Operating Temperature Range | -55 – 125 °C -67 – 257 °F |
| Operating Voltage | 250 VAC 250 VDC |
| Packaging Method | Box |
| Packaging Quantity | 1200 |
| Primary Product Color | Gray |
| Sealable | Yes |
| Strain Relief | Add By Accessory |
| UL Flammability Rating | 12mm Flame Test per Standard UL-94 |
