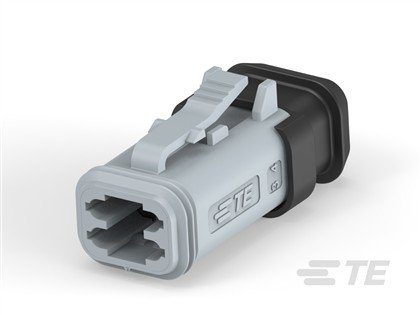

4CCT GREY PLUG W/LARGE SEAL & HS
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY / ICT |
| Part Number | 2-2600031-9 |
| PRC | ICT |
| Centerline (Pitch) | .177 in 4.5 mm |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Plug |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Wire |
| Contact Size | Size 16 |
| Mating Alignment | With |
| Mating Alignment Type | Polarized |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C 257 °F |
| Operating Temperature Range | -55 – 125 °C -67 – 257 °F |
| Primary Product Color | Gray |
| Sealable | Yes |
