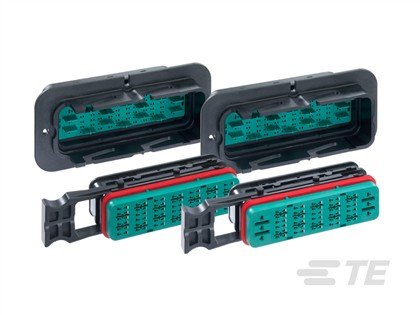

SRC Pwr 020ABCDEFG Male Blade Hsg Assy
| Weight | 0.05 kg |
|---|---|
| Dimensions | 5.27134 × 25364.5 cm |
| Manufacturer | TE CONNECTIVITY / ICT |
| Part Number | 2500016-1 |
| PRC | ICT |
| Agency/Standard | SAE J2030 |
| Centerline (Pitch) | .309 in 7.85 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Housing for Male Terminals |
| Connector Height | 2.42 in 61.6 mm |
| Connector Mounting Type | Panel Mount |
| Connector System | Wire-to-Wire |
| Contact Current Rating (Max) | 40 A |
| Housing Material | PA |
| Mating Alignment | With |
| Mating Alignment Type | Polarization Slot |
| Number of Positions | 20 |
| Number of Rows | 7 |
| Operating Temperature (Max) | 125 °C 257 °F |
| Operating Temperature Range | -40 – 125 °C -40 – 257 °F |
| Operating Voltage | 555 VAC 500 VDC |
| Packaging Method | Carton Tray |
| Packaging Quantity | 36 |
| Primary Product Color | Black |
| Row-to-Row Spacing | .528 in 13.4 mm |
| Sealable | Yes |
| Strain Relief | Add By Accessory |
| UL Flammability Rating | UL 94HB |
