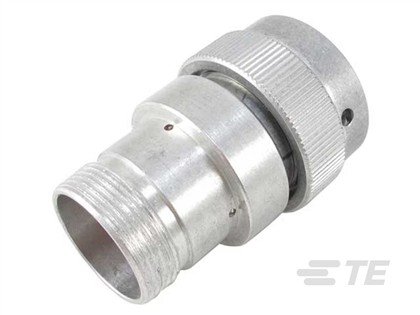

CONN PLUG HSNG FMALE 8POS INLINE
| Weight | 0.05 kg |
|---|---|
| Dimensions | 25765.28 × 169242.97 cm |
| Manufacturer | TE CONNECTIVITY / ICT |
| Part Number | HD36-18-8SN-072 |
| PRC | ICT |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Housing for Female Terminals |
| Connector Height | 1.692 in 42.97 mm |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Wire |
| Contact Current Rating (Max) | 25 A |
| Contact Size | Size 12 |
| Contact Type | Socket |
| Housing Material | Aluminum |
| Mating Alignment | With |
| Mating Alignment Type | Guide Slot |
| Number of Positions | 8 |
| Operating Temperature (Max) | 125 °C 257 °F |
| Operating Temperature Range | -55 – 125 °C -67 – 257 °F |
| Operating Voltage | 250 VAC 250 VDC |
| Packaging Method | Box |
| Packaging Quantity | 100 |
| Sealable | Yes |
| Strain Relief | Add By Accessory |
