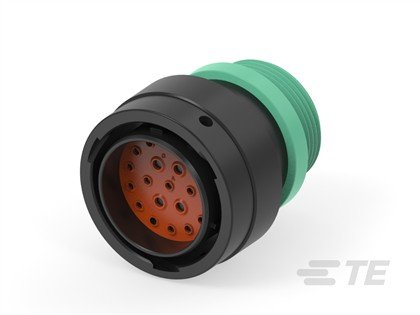

PLG 21P BLK N THD 12/16 P
| Weight | 0.05 kg |
|---|---|
| Dimensions | 218355.45 × 19549.53 cm |
| Manufacturer | TE CONNECTIVITY / ICT |
| Part Number | HDP26-24-21PN-L015 |
| PRC | ICT |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Housing for Male Terminals |
| Connector Height | 1.95 in 49.53 mm |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Wire |
| Contact Current Rating (Max) | 13 A 25 A |
| Contact Size | Size 12 Size 16 |
| Contact Type | Pin |
| Housing Material | PA GF |
| Mating Alignment | With |
| Mating Alignment Type | Guide Slot |
| Number of Positions | 21 |
| Operating Temperature (Max) | 125 °C 257 °F |
| Operating Temperature Range | -55 – 125 °C -67 – 257 °F |
| Operating Voltage | 250 VAC 250 VDC |
| Packaging Method | Box |
| Primary Product Color | Black |
| Sealable | Yes |
| Strain Relief | Add By Accessory |
| UL Flammability Rating | 20mm Flame Test per Standard UL-94 |
