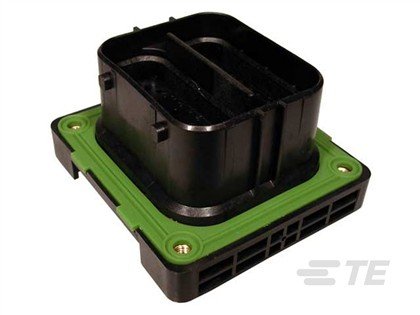

REC 64P BLK E FLANGE A
| Weight | 0.05 kg |
|---|---|
| Dimensions | 2.20556 × 3.22882 cm |
| Manufacturer | TE CONNECTIVITY / ICT |
| Part Number | SRK02-FLA-64A-001 |
| PRC | ICT |
| Agency/Standard | SAE J2030 |
| Centerline (Pitch) | .118 in .134 in .228 in .24 in 3 mm 3.4 mm 5.8 mm 6.1 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Housing for Male Terminals |
| Connector Height | 2.953 in 75 mm |
| Connector Mounting Type | Panel Mount |
| Connector System | Wire-to-Wire |
| Contact Current Rating (Max) | 13 A 7.5 A |
| Contact Size | Size 16 Size 20 |
| Contact Type | Pin |
| Housing Material | PBT |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Number of Positions | 64 |
| Number of Rows | 8 |
| Operating Temperature (Max) | 125 °C 257 °F |
| Operating Temperature Range | -55 – 125 °C -67 – 257 °F |
| Operating Voltage | 48 VAC 48 VDC |
| Packaging Method | Box |
| Packaging Quantity | 60 |
| Primary Product Color | Black |
| Row-to-Row Spacing | .138 in .427 in .447 in 10.85 mm 11.35 mm 3.5 mm |
| Sealable | Yes |
| Strain Relief | With |
| UL Flammability Rating | Not tested |
