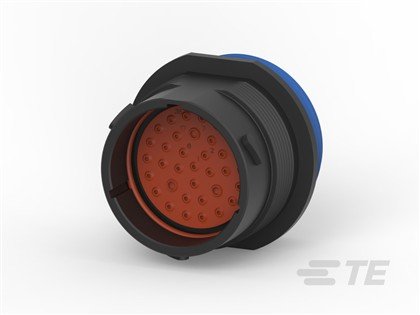

REC 35P BLK E WTHD 16/20 P
| Weight | 0.05 kg |
|---|---|
| Dimensions | 163541.53 × 250.8 cm |
| Manufacturer | TE CONNECTIVITY / ICT |
| Part Number | YHDP24-24-35PEL024 |
| PRC | ICT |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Housing for Male Terminals |
| Connector Height | 1.875 in 47.63 mm |
| Connector Mounting Type | Panel Mount |
| Connector System | Wire-to-Wire |
| Contact Current Rating (Max) | 13 A 7.5 A |
| Contact Size | Size 16 Size 20 |
| Contact Type | Pin |
| Housing Material | PA GF |
| Mating Alignment | With |
| Mating Alignment Type | Guide Post |
| Number of Positions | 35 |
| Operating Temperature (Max) | 125 °C 257 °F |
| Operating Temperature Range | -55 – 125 °C -67 – 257 °F |
| Operating Voltage | 250 VAC 250 VDC |
| Packaging Method | Box |
| Packaging Quantity | 200 |
| Primary Product Color | Black |
| Sealable | Yes |
| Strain Relief | Add By Accessory |
| UL Flammability Rating | 20mm Flame Test per Standard UL-94 |
